AVAYA IP Office 500

With a greater VCM channel capacity and performance, the IP Office 500 (IP500) is the most suitable of the IP Office range for IP Telephony applications. The IP500 also differs from the IP412 by providing a greater trunk expansion capability of up to four dual PRI trunks (giving a maximum of 240 channels). The IP500 is a stackable unit with an optional 19" rack mounting kit and an optional wall mounting kit for smaller configurations. The IP500 includes:

• 4 slots to house a mixture of extension cards and VCM cards
  • Digital Station 8 card
  • Phone 2 and Phone 8 cards
  • VCM-32 and VCM-64 cards
  • 4-Port Expansion card
• Optional trunk daughter card support:
  • Analog Trunk Module 4 card
  • BRI-4 and BRI-8 cards (2 x 2B+D and 4 x 2B+D channels respectively)
  • Single and Dual Universal PRI cards
• Support for IP400 trunk and VCM cards using a Legacy Card Carrier

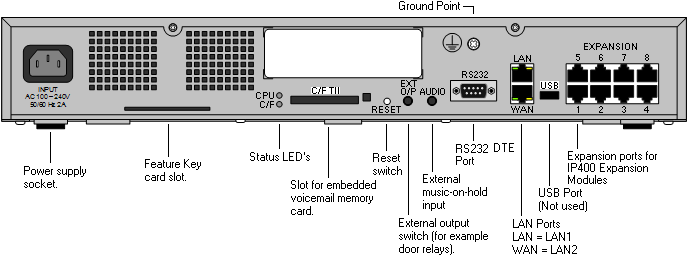

• Slot for smart card Feature Key – required for system operation as well as licensing of optional features.
• 9-pin DTE Port for maintenance.
• Support for up to 12 IP Office Expansion Modules (requires upgrade to Professional Edition):
  • Phone modules (8, 16, 30)
  • Digital Station modules (16, 30)
  • Analog Trunk Module 16
  • BRI So8 module
  • IP400 expansion modules (not WAN3 10/100 or Network Alchemy modules)
• External O/P socket supporting two relay on/off switch ports, e.g. for door entry systems.
• Audio input port for external music on hold source.
• 48 Data channels
• Up to 40 Voicemail Pro ports
• Two 10/100 switched Ethernet ports (Layer 3).

Voice Networking License

QSIG, H.323 and SCN capabilities are not enabled by default in the IP500. An additional license is required to enable this functionality with 4 simultaneous networking channels (no channel limit for QSIG). Additional channels can then be licensed in increments of 4. A Voice Networking license is still required to enable TDM QSIG, even though there is no limit to the number of TDM QSIG calls that can be made or received once licensed.

IP Office 500 Cards

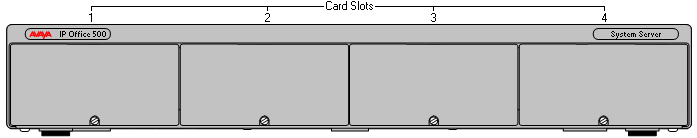

The IP 500 control unit has 4 slots for the insertion of cards. These cards can be divided into two types; base cards and daughter cards. Base cards include a front panel and ports for cable connections. Daughter cards can be added to a base card in order to provide additional facilities (typically trunk connections). The following base cards are available:

• Digital Station 8 Card (Maximum 3).
• Analog Phone 2 Card and Phone 8 Card (Maximum 4).
• VCM Card (Maximum 2).
• 4-Port Expansion Card (Maximum 1).
• Legacy Card Carrier (Maximum 2)

Digital Station 8 Card

This card provides 12 RJ45 ports. The first 8 ports are DS ports for the connection of AVAYA digital phones other than IP phones. The card can be fitted with an IP Office 500 daughter trunk card, which then uses the additional 4 RJ45 ports for trunk connections.

• This card accepts one IP 500 trunk daughter card of any type.
• 4400 Series phones (4406D, 4412D and 4424D) are not supported on this card, only on Digital Station expansion modules. Therefore a maximum of 240 4400 Series phones are supported in the system.

Analog Phone 2 Card

This card provides 2 analog extension ports (1-2) for the connection of analog phones. The card can be fitted with an IP Office 500 daughter trunk card, which then uses the last 4 RJ45 ports (9-12) for trunk connections.

• This card accepts one IP 500 trunk daughter card of any type.

Analog Phone 8 Card

This card provides 8 analog extension ports for the connection of analog phones. The card can be fitted with an IP Office 500 daughter trunk card, which then uses the additional 4 RJ45 ports for trunk connections.

• This card accepts one IP 500 trunk daughter card of any type.

VCM Card

This card provides voice compression channels for use with VoIP calls, SIP trunks and IP-based voice networking. The module is available in variants supporting up to 32 or 64 channels. The actual number of channels provided is controlled by the VCM Channel licenses entered into the system configuration.

Each VCM card has 4 VCM channels enabled by default. Further channels can be enabled up to the maximum (32 or 64) through adding one or more licenses (available in 4, 8, 16, 28 and 60 channel increments).
The maximum number of voice compression channels supported, using VCM base cards and / or IP400 VCM cards on a Legacy Card Carriers, is 128. The card can be fitted with an IP Office 500 daughter trunk card, which uses the 4 RJ45 ports for trunk connections.

• This card accepts one IP 500 trunk daughter card of any type.

4-Port Expansion Card

• This card provides connectors for 4 additional expansion modules.
• It is not possible to connect a daughter card to the 4-port expansion card.

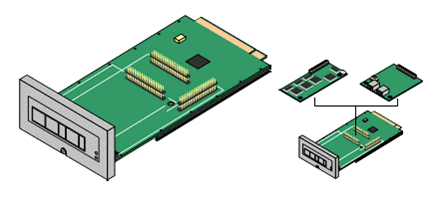

Legacy Card Carrier

This card allows a variety of IP400 trunk and VCM cards to be used with the IP Office 500 control unit. The front of the card includes a number of panels that can be snapped off to match the ports available when an IP400 trunk card is fitted.

• This card does not accept any IP 500 daughter trunk cards.
• The IP Office 500 control unit can accept up to 2 IP400 trunk or VCM cards by mounting each card on an IP Office 500 Legacy Card Carrier

This card supports the following IP400 cards:

• PRI T1
• Dual PRI T1
• PRI 30 E1 (1.4)
• Dual PRI E1
• PRI 30 E1R2 RJ45
• Dual PRI E1R2 RJ45
• ANLG 4 Uni
• BRI-8 (UNI)
• VCM 4
• VCM 8
• VCM 16
• VCM 24
• VCM 30

Trunk Cards

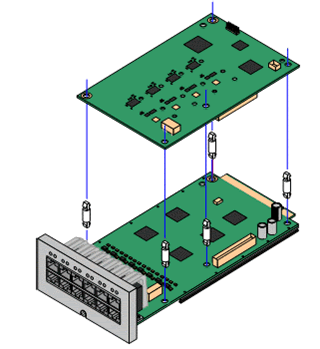

IP Office 500 daughter trunk cards can be fitted to existing IP Office 500 base cards to provide support for trunk ports. The daughter card uses the ports provided on the base card for cable connection. The addition of a daughter trunk card is supported on IP Office 500 Digital Station, Analog Phone and VCM base cards. They are not supported on the Avaya Legacy Card Carrier base card.

For those base cards that support daughter cards, there are no restrictions on the combination of card types.
However in systems with both analog phone 8 base cards and analog trunk daughter cards, combining the two types are recommended as it then provides analog power failure support for two trunks/extensions. (Not applicable to the Analog Phone 2 base card.) Each daughter card is supplied with the spacer pegs required for installation and a label to identify the cards presence on the physical unit once installed.

• Analog Trunk Card (Maximum 4).
• BRI Trunk Card (Maximum 4).
• PRI Trunk Card (Maximum 4).

Analog Trunk Card

This card can be added to an IP Office 500 Digital Station card, Analog Phone base card or VCM card. It allows that card to then also support 4 analog loop-start trunks. It also provides one analog V.32 modem.

• When fitted to an IP 500 Analog Phone 8 base card, the combination supports 1 power failure extension to trunk connection.

BRI Trunk Card (Euro ISDN)

This type of card can be added to an IP Office 500 Digital Station card, Analog Phone card or VCM card. It allows that card to then also support up 4 BRI trunk connections, each trunk providing 2B+D digital channels. The card is available in 2 port (4 channels) and 4 port (8 channels) variants.

From IP Office release 4.2 onwards, the ports on IP500 BRI cards can be individually configured to operate as an S-interface (S0 mode). When set as an S interface the settings for the Line will be exactly the same as for a circuit on an So8 Expansion Module.

These trunks support the mobility features of Mobile Call Control and one-X Mobile client support introduced in Release 4.2.

PRI Trunk Card

This type of card can be added to an IP500 Digital Station card, Analog Phone card or VCM card. It allows that card to then also support primary rate digital trunk connections. Available in single and dual versions the IP500 PRI card provides single and dual primary rate trunk interfaces respectively. The PRI is configurable for T1, E1 or E1R2 MFC use depending on the territory.

Details of the supported ISDN supplementary services and protocols for each PRI are given in the 'Public and Private Voice Networks' section.

The IP500 Universal PRI trunk cards incorporate an integrated CSU/DSU. The CSU function allows the trunk to be put in loop-back mode for testing purposes. This can be set manually, using the monitor application, or automatically from a Central Office sending a Line Loop Back (LLB) pattern. The DSU function allows the T1 trunk to be shared between data and voice services.

Here is a summary of the capabilities of the card:

• Each card is configurable to connect to T1, E1 or E1R2 lines.
• The card is available in either a single or dual PRI variant. The single variant can support up to 24 T1 channels or up to 30 E1 channels. The dual variant can support up to 48 T1 channels or 60 E1 channels.
• On each card, 8 channels are enabled by default. Further channels may be enabled by the purchase of additional licenses in 2-channel or 8-channel increments.
• The IP500 PRI daughter card works on any IP500 VCM or extension base card (not the Legacy Card Carrier).
• Up to four Universal PRI cards can be installed in any combination in the IP500 chassis.
• Diagnostics capabilities:
  • Visual indicators to show service state
  • Physical test points to monitor traffic
• These trunks support the mobility features of Mobile Call Control and one-X Mobile client support introduced in Release 4.2.
